The Vox AC4TV Amplifier







2_Footer
© 1998 - 2017 The Vox Showroom, all rights reserved. No use on online auctions, eBay or Reverb.


Model Dimensions Weight MSRP Street Price
AC4TV 13.78" x 8.46" x 14.76" 20 lbs $350 $249

The original 1961 Vox AC-4 was a four tube, open ended circuit with a 12AX7 and a EF86 preamp tube, one EL-84 power tube, and one EZ80 rectifier tube. The four watt amp powered an 8" Elac speaker.

When Vox introduced a reissue AC4 in 2009, they chose to not copy the original circuit. They created a totally new amp with modern features and retro tone.

The preamp of the AC4TV is powered by one twin triode 12AX7 configured into a cascading circuit. This choice of tube and circuit allowed for higher gain potential, so that the amp may be either clean or overdriven, depending on the volume setting. The single ended EL-84 four watt tube power section is connected to a power attentuator to allow the output of the AC-4TV to be adjusted between 1/4 watt or one watt if the full 4 watt output is not desired. The amp has a solid state (diode) rectifier for greater head room.

A tone control rolls off the highs, if desired.

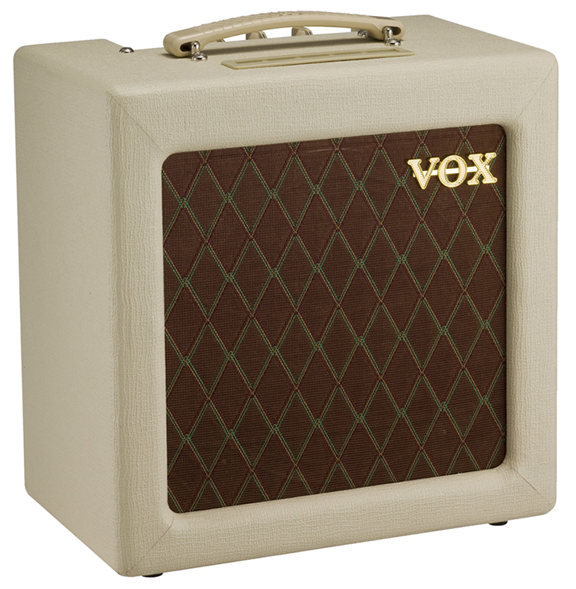

The AC4TV light tan vinyl covered TV cabinet was inspired by the Vox Heritage Amp Series. The earliest version of the AC-4 (actually called AC-2 at the time) also had a "TV" front amp cabinet.

Celestion designed a special 10" speaker for Vox to use in the AC4TV.
